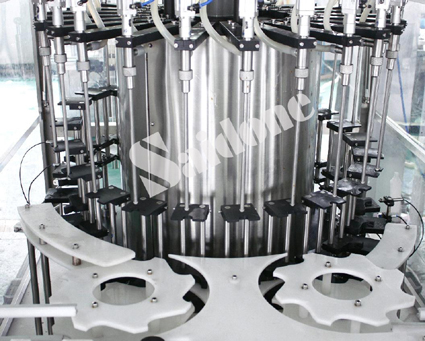

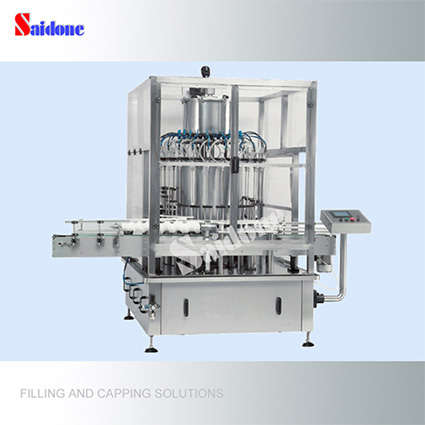

Automatic Continuous Gravity Filling Machine
Our LRF-AGF Series are designed with the gravity filling principal and rotary filling method. They are suitable for filling various kinds of water-thick and low viscosity products with high speed, and can be widely used in the alcohol, condiment, beverage or other industries.
Features Including：
● The materials of all the parts that the product flows through are composed of stainless steel and silicone tubes with FDA certification
● Convenient adjustment, simple operation, and a few maintenances are needed
● One machine can be used on different bottles with different shapes and heights
● The machine can be used to fill the kinds of products with fluidity, and especially suitable for filling rich foaming products
Technical Specifications：
| Filling Nozzles | 16 nozzles | 24 nozzles |
| Filling Volume | Ideal Range: Max.1000ml | |
| Filling Speed | Max. 140 bpm. | Max. 200 bpm. |
| （For 500 ml/ bottle water） | ||
| Filling Accuracy | ±1% | |
